How to connect LCD Display on the Arduino using only 2 pins

Generally for connecting an LCD display to an Arduino using 7 strands, it usually breaks the leg that has any projects that remain few ports to be used. But there is a way, using an IC 74LS164 (8-bit serial shift register), a resistor and a diode, but it's not just hardware, you have to use a library.

This Arduino library for connection of 2-wire or 3-wire using HD44780 compatible LCD display via shiftregisters. This circuit is considered "deprecated", but it's worth testing.

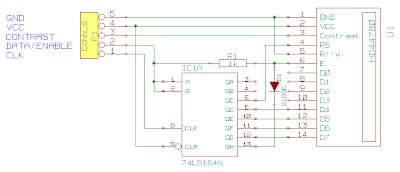

LCD Display on the Arduino Circuit

Comments

NE566 Function Generator Circuit Diagram

The NE566 Function Generator is a Voltage-Controlled Oscillator of exceptional linearity with buf fered square wave and triangle wave outputs. The frequency of oscillation is determined by an external resistor and capacitor and the voltage applied to the control terminal. The Oscillator CAN be programmed over a ten-to-one frequency range by proper selection of an external resistance and modulated over a ten-to-one range by the control voltage, with exceptional linearity. FMAX = 1 MHz WIDE 1000:1 Continuous Sweep Possible NE566 Function Generator Circuit Diagram Pdf Datasheet Sourced by : Circuitsstream

TDA2030 complete tone control

At this time I present a series of amplifiers that use IC TDA2030, but this series is equipped with a tone control. Tone controls include Bass, Treebel, and Volume. Power amplifier and tone control has been put together in a single PCB. As well as its power supply circuit was also used as one with the power amp, and tone control. Making it easier in the installation and will look neat. Schematics Layout PCB PCB design This amplifier is a mono amplifier type, can be modif for guitar amplifiers. If not coupled amplifier (mic preamp) then you must deactivated potensio treble and bass, why? because if not using a mic preamp and still maintain potensio treble and bass sound input (input) from the guitar will not or the maximum discharge is not tight on the speakers. So you must deactivated a way to decide which directly connected capacitor with the tone control circuit, and capacitor were connected directly to potensio volume and input jack.

Simple Preamplifier and High to Low impedance Converter Circuit Diagram

This is the Simple Preamplifier and High to Low impedance Converter Circuit Diagram. This circuit matches the very high impedance of ceramic cartridges, unity gain, and low impedance output. Simple Preamplifier and High to Low impedance Converter Circuit Diagram By `loading` the cartridge with a 2M2 input resistance, the cartridge characteristics are such as to quite closely compensate for the RIAA recording curve. The output from this preamp may be fed to a level pot for mixing. Sourced By: Circuitsproject
